Ana sayfa > Ürünler> Dolap ve Raf> Smart Rack PDU with Remote Monitoring Environmental Monitoring and Alarm Management for Data Centers

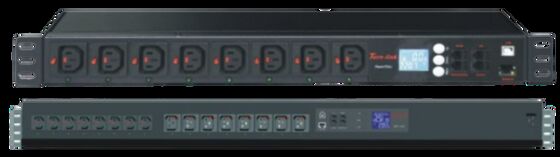

Smart Rack PDU with Remote Monitoring Environmental Monitoring and Alarm Management for Data Centers

Smart Rack PDU with Remote Monitoring Environmental Monitoring and Alarm Management for Data Centers
Smart Rack PDU with Remote Monitoring Environmental Monitoring and Alarm Management for Data Centers
Temel bilgi
Menşe yeri: Çin
Marka adı: Zion communication OR OEM
Sertifika: ISO, CE, RoHS, UL
Model numarası: Ağ Rack Kabinesi
Min sipariş miktarı: 1.000 adet
Ambalaj bilgileri: 1 ADET/Plastik Poşet, ADET/Karton
Teslim süresi: Normalde 10 iş günü
Ödeme koşulları: T/T,L/C
Yetenek temini: 30.000 ADET / Ay
En iyi fiyat Şimdi başvurun
Detay Bilgi
Modeli: PDU Modülleri ve Aksesuarları Bnad: Zion İletişim
Renk: Siyah, Gri Yükleme Kapasitesi: 60kg
Vurgulamak:

Remote Monitoring Smart Rack PDU

,

Environmental Monitoring Intelligent Rack PDU

,

Alarm Management SPDU

Ürün Açıklaması

Smart Rack PDU

ZION Smart PDU / SPDU Series is designed for intelligent rack power distribution and monitoring in data centers, telecom facilities, and critical infrastructure environments. This page separates the main SPDU series into independent product sections for clearer selection and better project matching.

Remote Monitoring
Main Power Control
Environmental Monitoring
Alarm Management


■ Overview

ZION Smart PDU / SPDU Series is a next-generation intelligent rack power distribution and monitoring solution for modern IT and critical infrastructure applications. The catalog shows that the system supports centralized cabinet power and environmental management through LAN / WAN, covering electrical monitoring, environmental sensing, alarm threshold configuration, and remote control capability.

To improve front-end clarity, the main SPDU platform series, B series, and C series are presented below as separate product sections rather than one combined block.


■ Series Overview

SPDU2000 / 5000 -A/B/C/D Series
Platform-level intelligent rack power distribution and monitoring series for complete smart cabinet management.
SPDU2000B / SPDU5000B Series
Monitoring and main power control smart PDU for applications without individual outlet switching.
SPDU2000C / SPDU5000C Series
Smart monitoring and control series for cabinet-level power visibility and centralized management.


■ SPDU2000 / 5000 -A/B/C/D Series

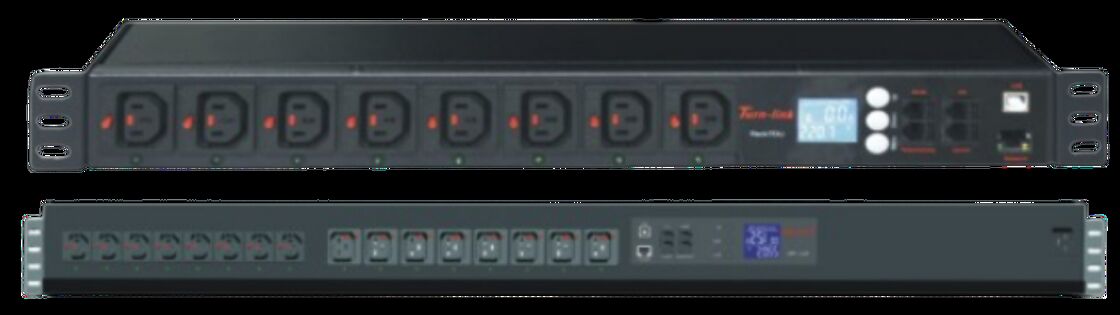

Smart Rack PDU with Remote Monitoring Environmental Monitoring and Alarm Management for Data Centers 0
SPDU2000 / 5000 -A/B/C/D Series
Intelligent rack power distribution and monitoring system designed for modern IT and intelligent infrastructure.
Positioning: Full smart PDU platform
Series Highlights
  • Monitor total load current, working voltage, total power, energy consumption, and frequency
  • Support temperature and humidity monitoring, smoke detection, water-logging detection, and cabinet door status
  • Support remote power ON/OFF for each individual outlet
  • Support sequential power ON/OFF with configurable intervals
  • Support scheduled power ON/OFF for timer-based control
  • Embedded intelligent control system with remote management and firmware / software upgrade support
  • User-defined alarm threshold settings with automatic alarm when thresholds are exceeded


■ SPDU2000B / SPDU5000B Series

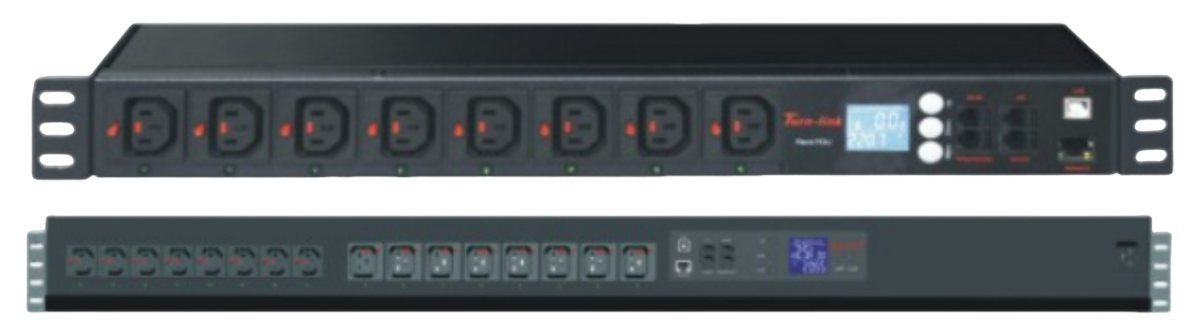

Smart Rack PDU with Remote Monitoring Environmental Monitoring and Alarm Management for Data Centers 1
SPDU2000B / SPDU5000B Series
Monitoring plus main power control smart PDU for projects that do not require individual outlet switching.
Positioning: Monitoring + main power control
Series Highlights
  • Monitor total load current, working voltage, total power, energy consumption, and frequency
  • Support temperature and humidity monitoring, smoke detection, water-logging detection, and cabinet door status
  • Support remote ON/OFF for main power control
  • Suitable for applications without individual outlet switching
  • Embedded intelligent control system with remote management and software upgrade support
  • Support user-defined alarm threshold settings and automatic alarm response


■ SPDU2000C / SPDU5000C Series

Smart Rack PDU with Remote Monitoring Environmental Monitoring and Alarm Management for Data Centers 2
SPDU2000C / SPDU5000C Series
Smart rack power monitoring and control series for cabinet-level visibility and centralized management.
Positioning: Monitoring + main power control
Series Highlights
  • Monitor total load current, working voltage, total power, energy consumption, and frequency
  • Support temperature and humidity monitoring, smoke detection, water-logging detection, and cabinet door status
  • Support remote ON/OFF for main power control
  • Suitable for cabinet-level power visibility and centralized smart management
  • Embedded intelligent control system with remote management and software upgrade support
  • Support user-defined alarm threshold settings and automatic alarm when thresholds are exceeded


■ Core Features Across the Smart PDU Family

Electrical Parameter Monitoring
Current, voltage, total power, energy consumption, and frequency monitoring.
Environmental & Security Status
Temperature, humidity, smoke, water-logging, and cabinet door status monitoring.
Remote Management
Remote control capability, centralized management, and firmware / software upgrade support.
Alarm & Protection Logic
Configurable alarm thresholds for current, voltage, temperature, and humidity with automatic alarm response.


■ Typical Applications

Data Center Cabinets
Smart power visibility, alarm-based management, and remote control for cabinet-level operation.
Telecom Facilities
Remote monitoring and main power management for communication infrastructure.
Critical Infrastructure
Suitable for projects requiring electrical monitoring, environmental sensing, and alarm capability.
Multi-site Cabinet Management
Supports centralized cabinet management across multiple data rooms via LAN / WAN.
