Ana sayfa > Ürünler> Dolap ve Raf> ZWS-B Double-Section Wall Cabinet with Swing Rear Section and Flat-Pack Delivery for Efficient Network Installations

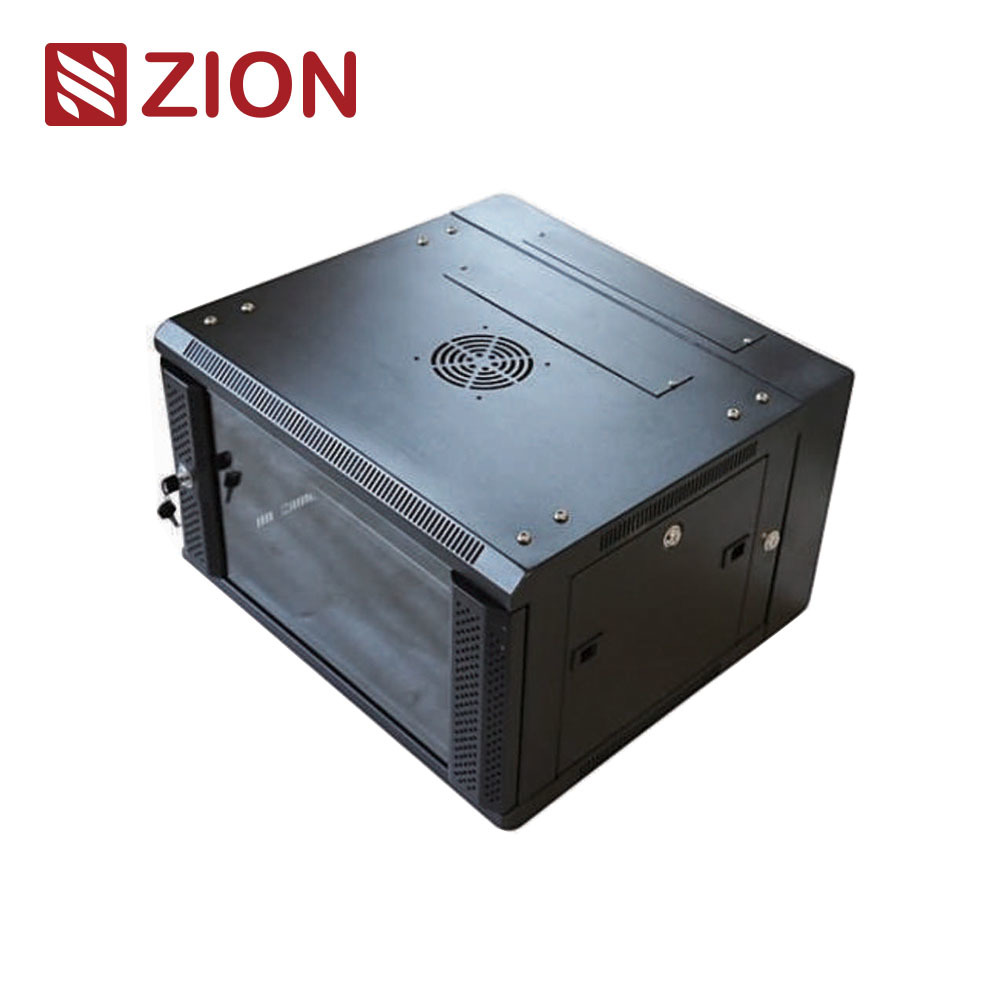

ZWS-B Double-Section Wall Cabinet with Swing Rear Section and Flat-Pack Delivery for Efficient Network Installations

ZWS-B Double-Section Wall Cabinet with Swing Rear Section and Flat-Pack Delivery for Efficient Network Installations
ZWS-B Double-Section Wall Cabinet with Swing Rear Section and Flat-Pack Delivery for Efficient Network Installations
Temel bilgi
Menşe yeri: Çin
Marka adı: Zion communication OR OEM
Sertifika: ISO, CE, RoHS, UL
Model numarası: Ağ Rack Kabinesi
Min sipariş miktarı: 1.000 adet
Ambalaj bilgileri: 1 ADET/Plastik Poşet, ADET/Karton
Teslim süresi: Normalde 10 iş günü
Ödeme koşulları: T/T,L/C
Yetenek temini: 30.000 ADET / Ay
En iyi fiyat Şimdi başvurun
Detay Bilgi
Modeli: Ağ Rack Kabinesi Bnad: Zion İletişim
Renk: Siyah, Gri Yükleme Kapasitesi: 60kg
Vurgulamak:

Double-Section Design Wall Cabinet

,

Swing Rear Section Network Rack Cabinet

,

Flat-Pack Delivery Wall-Mounted Enclosure

Ürün Açıklaması

ZWS-B Double Section Wall Cabinet

The ZWS-B Double Section Wall Cabinet is a double-section 19-inch wall-mounted enclosure designed for network, telecom, and security installations where space efficiency and rear access are required, with a swing-frame structure that improves cable management and maintenance accessibility.

Network Integrators
Telecom Contractors
Security Installers
IT Procurement Teams
Project Managers
Maintenance Teams
Quick Takeaway
  • A double-section wall cabinet for indoor network, telecom, and security deployments where rear access matters.
  • The swing rear section improves maintenance convenience compared with a fixed single-section wall cabinet.
  • Flat-pack delivery helps reduce shipping space and transport cost in project procurement.
Reserved Image Module

Add front view, swing-open rear access view, flat-pack display image, or installation photo here.

Reserved Video Module

Suitable for swing-frame demo, flat-pack assembly video, maintenance access explanation, or factory overview.

■1) Overview

The ZWS-B Double Section Wall Cabinet is a 19-inch wall-mounted enclosure designed for network, telecom, and security installations where both space efficiency and rear access are required. It combines a double-section layout with a swing rear section, making it more service-friendly than a basic fixed-body wall cabinet.

For engineering and procurement teams, the main value of this model is practical maintenance access plus transport efficiency. In addition to its swing-frame service logic, the cabinet also supports cost-efficient flat-pack delivery, which can help reduce logistics footprint in project shipments.

Field reality

Wall cabinets are often chosen for space savings, but maintenance usually becomes the real issue later. A double-section swing structure is valuable when rear-side cable access cannot be ignored after installation.

ZWS-B Double-Section Wall Cabinet with Swing Rear Section and Flat-Pack Delivery for Efficient Network Installations 0

■2) Key Features

The ZWS-B is designed for sites where service access, cable organization, and transport efficiency all matter. Its feature set is focused on making installation and later maintenance more manageable in indoor edge environments.

Feature What It Means Project Benefit
Welded Steel Structure Precise, durable cabinet construction Improves structural confidence and service life
Double-Section Design Compatible with standard 19-inch equipment Supports easier servicing than fixed single-section cabinets
180° Glass Front Door Easy front-side installation and servicing Improves inspection and front access efficiency
Removable Side Panels Quick access with optional lock Adds maintenance flexibility
Swing Rear Section Back frame swings over 90° Makes rear access and cable work easier
Top & Bottom Cable Entry Knock-out design for flexible routing Helps adapt to site-specific cable directions
Adjustable Mounting Rails L-shaped profiles for depth adjustment Improves equipment fit accuracy
Fan-Ready Top Panel Supports ventilation upgrade Useful for active equipment in enclosed spaces
Flat-Pack Delivery Saves shipping space and transport cost Improves logistics efficiency for larger project orders

■3) Technical Specifications

Item Specification
Rack Standard 19-inch
Frame Material SPCC high-quality cold rolled steel
Mounting Profile Thickness 1.2 mm
Other Parts Thickness 1.0 mm
Surface Treatment Degreasing → Pickling → Phosphating → Powder Coating
Static Loading Capacity Up to 30 kg
Protection Level IP20
Front Door 180° glass front door, with multiple door styles shown in structure diagram
Swing Rear Section Back frame swings over 90°
Cable Entry Top and bottom cable entry with knock-out design
Ventilation Fan-ready top panel
Standards Compliance ANSI/EIA RS-310-D, IEC 60297-2, DIN 41497 Part 1, DIN 41494 Part 7, GB/T 3047.2-92
Key takeaway
30 kg static load places this series in the light-duty indoor application category.
Flat-pack delivery is a meaningful logistics advantage for shipping and project cost control.
Swing rear access remains the main functional reason to choose this series over a standard single-section wall cabinet.

ZWS-B Double-Section Wall Cabinet with Swing Rear Section and Flat-Pack Delivery for Efficient Network Installations 1

■4) Construction / Materials

The ZWS-B uses a steel-based double-section architecture built around mounting plates, rear door, frame, inner swing frame, side panels, and mounting rails. The structure is designed to combine wall-mount space efficiency with more service-friendly access than a fixed cabinet body.

Component Qty Material / Spec Surface Finish Notes
Mounting Plate 4 pcs 0.8 mm cold rolled steel Powder coated —
Rear Door 1 pc 1.2 mm cold rolled steel Powder coated With lock
Frame 1 pc 1.2 mm cold rolled steel Powder coated Main cabinet frame
Inner Swing Frame Door 1 pc 1.2 mm cold rolled steel Powder coated Supports rear access structure
Side Panel 2 pcs 0.8 mm cold rolled steel Powder coated Removable
Mounting Rail 4 pcs 1.2 mm cold rolled steel Powder coated Adjustable L-shaped profile
Lock / Screws / Nuts / Wrench Included set Project hardware — Assembly and service support
Practical rule

If the project values rear maintenance access and shipping efficiency at the same time, a double-section flat-pack design can be a more economical long-term choice than a basic fixed wall cabinet.


■5) Applications

The ZWS-B is best suited to indoor projects where equipment density is moderate, space is limited, and technicians still need rear access for cable routing, service work, or future upgrades. It is particularly practical for organized edge-side deployments that benefit from lower transport cost.

Application Scenario Why ZWS-B Fits What to Verify Before Approval
Network edge point Swing rear access improves cable and service convenience Wall opening clearance and real device depth
Telecom distribution installation Organized 19-inch wall cabinet with rear accessibility Cable direction, service plan, accessory need
Security / CCTV site Useful where enclosed devices still need periodic service access Heat load, lock logic, cooling planning
Space-limited indoor environment Wall-mounted format saves footprint while keeping better service access Swing radius, aisle width, nearby obstructions
Project shipments needing logistics efficiency Flat-pack delivery helps reduce shipping space and transport cost Assembly capability, packaging expectations, delivery planning

ZWS-B Double-Section Wall Cabinet with Swing Rear Section and Flat-Pack Delivery for Efficient Network Installations 2

■6) Decision Rules / Engineer’s Shortcut

The key engineering question is whether the site really benefits from rear access and flat-pack shipment efficiency. If yes, ZWS-B can be more practical than a simple single-section wall cabinet. If not, a simpler cabinet may be enough.

Decision Point Choose ZWS-B When Do Not Choose It When Alternative Direction Cost / Risk / Maintainability Impact
Rear access need Technicians will need rear-side access after installation Front-only access is sufficient for the full lifecycle Use a single-section wall cabinet Correct choice reduces future service labor
Logistics concern Shipping space and transport cost matter in the project Logistics efficiency is not a priority Choose based purely on service requirements Flat-pack can improve total delivery economics
Load level Total installed load stays within 30 kg Heavier equipment or stronger reserve is needed Select a heavier-duty cabinet platform Wrong load planning creates safety and reliability risk
Swing clearance There is enough room to open the rear section over 90° The site is too constrained for proper opening Rethink mounting position or use a different enclosure type Without opening space, the main service benefit is lost
Depth fit 550 mm or 600 mm depth options match real device layout Device body plus cable allowance exceed usable space Move to a deeper or different cabinet type Depth mismatch causes installation delay and rework
Thermal planning Heat load is moderate and ventilation upgrade is enough The site needs stronger thermal strategy from the start Add cooling modules or choose a more airflow-oriented solution Better thermal planning improves stability and equipment life
Practical rule

Choose ZWS-B when rear maintenance access is important, total load stays under 30 kg, swing clearance is available, and shipping efficiency is part of the project decision.

■7) Selection Guide

A correct ZWS-B choice should be based on service workflow, shipment economics, and actual device layout. Procurement teams often compare only cabinet size, but the more important factors are rear access value, load control, depth match, and assembly expectation.

Selection Factor Question to Ask Recommendation
Rear access value Will rear-side cable or equipment access be useful during the cabinet’s life? If yes, double-section structure is often justified
Shipment planning Is reduced shipping volume important for the project? Flat-pack delivery can improve logistics efficiency
Load Does the full installed load remain within 30 kg? Count all mounted devices and accessories, not only rack units
Depth Will 550 mm or 600 mm depth fit equipment plus connector allowance? Measure real installed depth before approval
Swing opening Can the rear section open fully in the chosen wall position? Verify nearby wall, conduit, and aisle clearance first
Assembly expectation Is the site ready to handle flat-pack delivery and assembly workflow? Confirm installation process with the project team in advance
Part No. Height (U) Width (mm) Depth (mm) Cabinet Height (mm)
ZWS-B06-655 6U 600 550 370
ZWS-B09-655 9U 600 550 503.3
ZWS-B12-655 12U 600 550 636.7
ZWS-B15-655 15U 600 550 770
ZWS-B18-655 18U 600 550 903.4
ZWS-B06-660 6U 600 600 370
ZWS-B09-660 9U 600 600 503.3
ZWS-B12-660 12U 600 600 636.7
ZWS-B15-660 15U 600 600 770
ZWS-B18-660 18U 600 600 903.4

■8) Model List

The ZWS-B series is available from 6U to 18U with 600 mm width and 550 mm or 600 mm depth options. This makes it easier for project teams to standardize cabinet selection while matching both device layout and wall-space constraints.

  • 6U, 9U, 12U, 15U, and 18U models are available.
  • Depth options include 550 mm and 600 mm.
  • Cabinet height scales with rack-unit count, helping teams plan wall occupation more accurately.
  • The part-number structure supports easier procurement standardization across multiple project sizes.

■9) FAQ

1. What is the main advantage of the ZWS-B double-section cabinet?

Its main advantage is the combination of rear access and space-efficient delivery. The swing rear section improves maintenance access, while flat-pack delivery can reduce shipping cost.

2. Is this cabinet suitable for heavy-duty equipment?

No. The stated static loading capacity is up to 30 kg, so it is intended for lighter-duty indoor applications.

3. When should I choose this instead of a single-section wall cabinet?

Choose it when rear cable access and easier servicing are important, or when the project benefits from more efficient flat-pack shipment.

4. Does it support multiple front door styles?

Yes. The structure diagram shows glass, steel, and perforated steel door options depending on visibility and airflow requirements.

5. What should be checked before fixing the cabinet location?

Check wall strength, swing opening clearance, front service space, cable-entry direction, and whether the site can support the planned assembly workflow.

6. What accessories or additions should be considered?

Consider cooling upgrade, cable-management accessories, and any configuration that supports the actual maintenance and routing needs of the project.

■10) Conclusion

The ZWS-B Double Section Wall Cabinet is a practical solution for indoor network, telecom, and security deployments where rear access and transport efficiency both matter. Its swing rear section improves maintenance convenience, while flat-pack delivery supports more economical shipping for project orders.

For best results, select the cabinet based on real maintenance workflow, total load, equipment depth, swing clearance, and logistics planning. When those factors are aligned early, ZWS-B becomes a service-friendly and project-efficient wall-mount cabinet choice.
